Ceramic anti-metal label Overview:

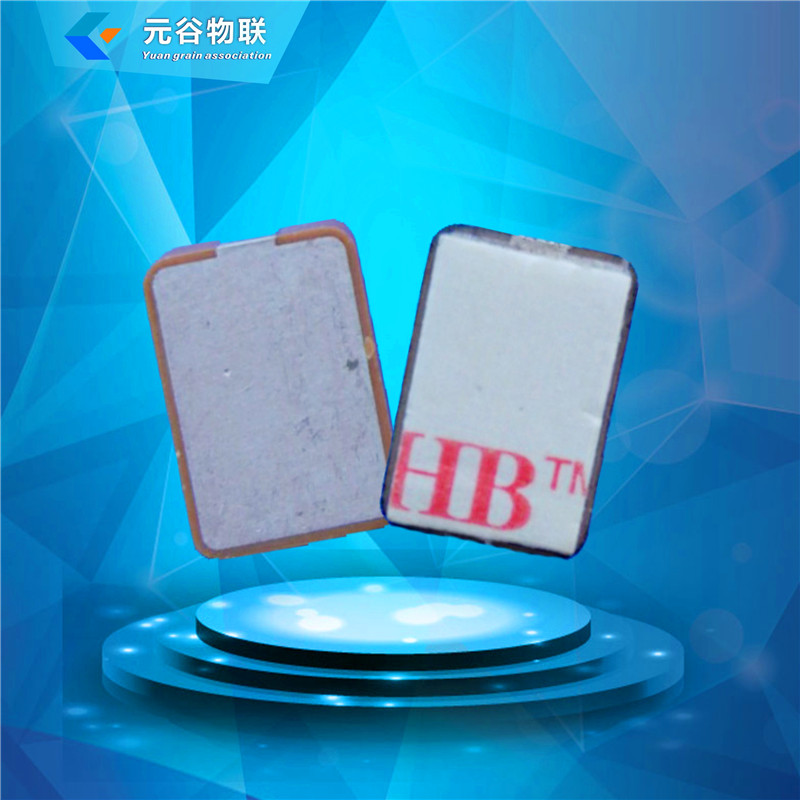

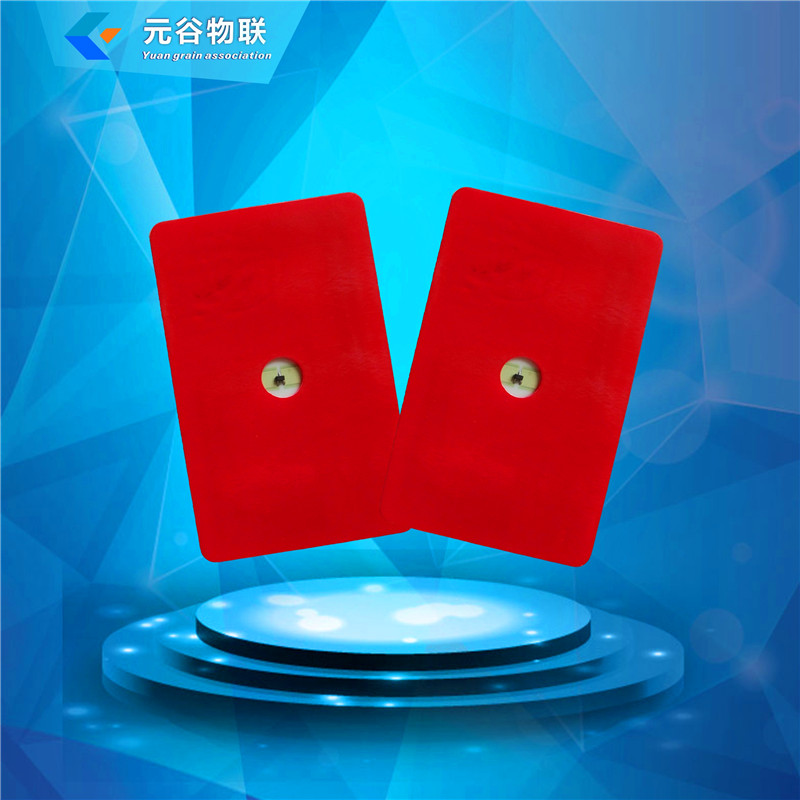

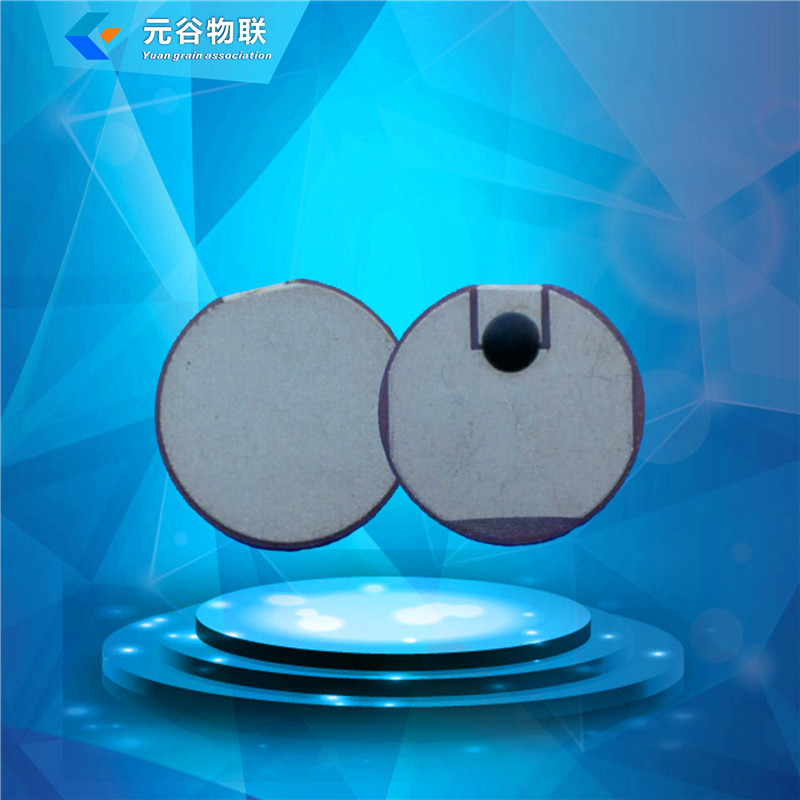

Ceramic anti-metal label with microwave ceramic dielectric substrate, with a small size, light weight, high temperature, fatigue, easy installation, stable performance, suitable for metal media objects installed. For example, safe, computer, doors and windows, molds, vehicles and other signal interference or harsh environments used in electronic tags.

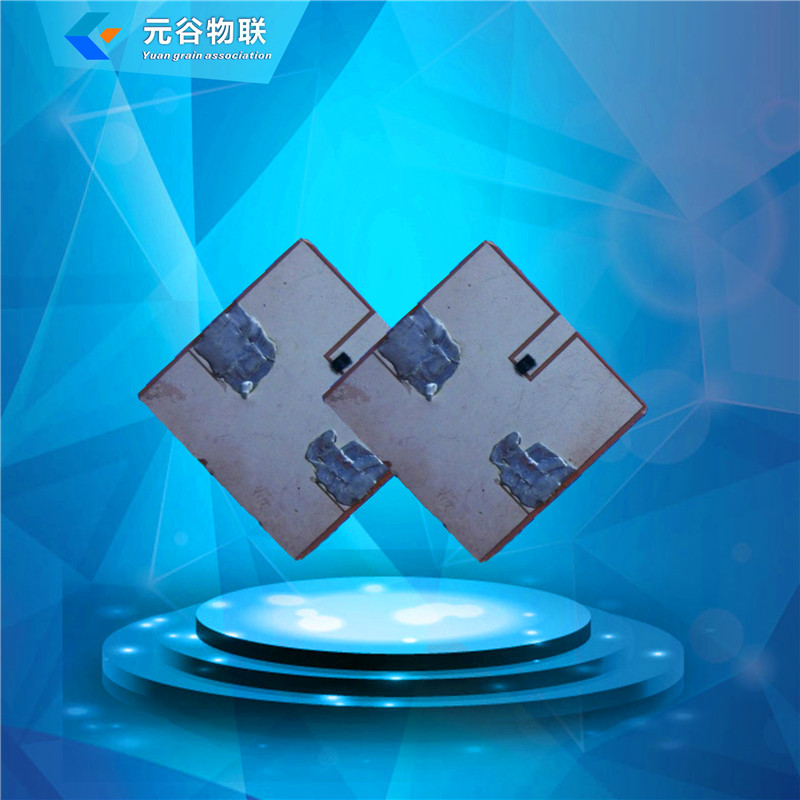

Ceramic electronic tag operating frequency is 915MHZ, reading distance of up to 25m (with the reader-related). It is based on ceramic materials packaging electronic tags, with high electrical characteristics and high-performance, fragile anti-transfer. In the ceramic substrate to stop the electronic tag antenna, the dielectric loss is small, high flat characteristics, antenna performance and stability; high sensitivity.

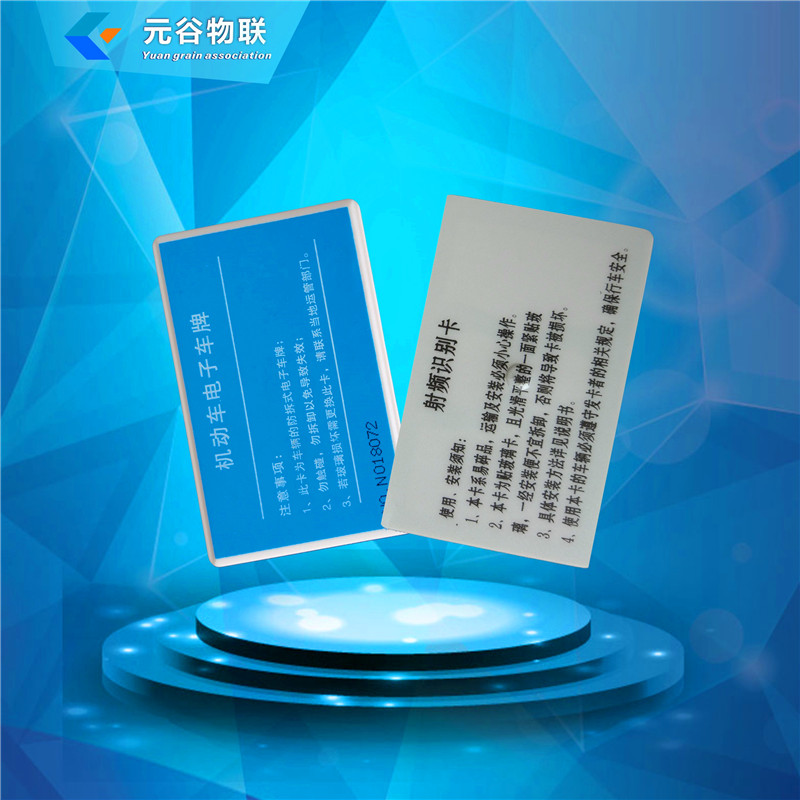

The tamper-proof ceramic label is combined with the automotive glass for excellent read performance. The use of composite ceramic substrate inside the label, with high temperature, stable performance and so on. Once tamper-evident ceramic labels are removed from the windscreen of the vehicle, the label is immediately deactivated and can not be reused, thus preventing illegal removal of the label.

Applications:

☆ logistics and warehousing management: goods flow and warehousing management and mail, parcels, baggage and other flow management;

☆ Intelligent Parking Management: Parking management and vehicle management and billing automation;

☆ production line management: the production process identification of fixed-point;

☆ product security detection: the use of tags within the memory write protection function, the authenticity of the product identification;

☆ anti-cheat weighing system: the weight of the vehicle to be identified overweight vehicles, information, especially the unweighted value of the weighing system;

☆ transport vehicle management: bus stop, parking management; sand trucks, dump trucks and other vehicles to identify the number of transport management;

☆ other areas of management: such as the meeting attendance, Club VIP, library, student status, consumption management, attendance management, dining management, swimming pool management systems have been widely used.

Installation and use

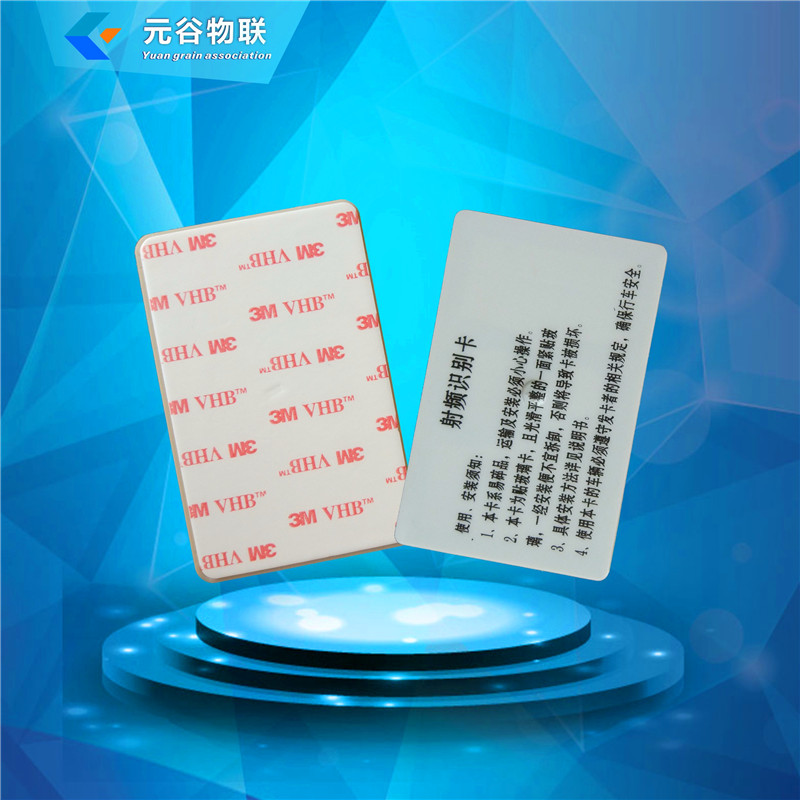

Tamperproof ceramic label transparent double-sided adhesive is dedicated to the installation of glass surface label. Has excellent bond strength, good packaging performance can replace some of the traditional mechanical connection, play a role in the structure of fixed. In addition, the label also has anti-ultraviolet, anti-solvent, to adapt to a wide temperature range and other characteristics, even at 70 ℃ high temperature, still maintain the normal bond strength, and for a certain arc surface installation can be used outdoors. If you remove the protective film on the back of the label with double-sided tape, you can securely attach the label to the windshield, but it will be very difficult to remove it. The double-sided plastic removed after the pollution does not stain the window glass, can be used for anti-theft tag installation.

Technical Parameters

Material: ceramic

Size: 86.5 × 54 × 0.635mm (can be customized)

Support agreement: ISO18000-6C

Storage capacity: 512 bit

Operating temperature: -40 ℃ ~ +220 ℃

Recognition distance: 1cm ~ 25m (according to the reader and work environment changes)

Number of rewritable: 100,000 times

color: white

Printing: silk screen

Weight: 11.18 + -0.03 g

Packing: 100PCS / ceramic box
