Introduction:

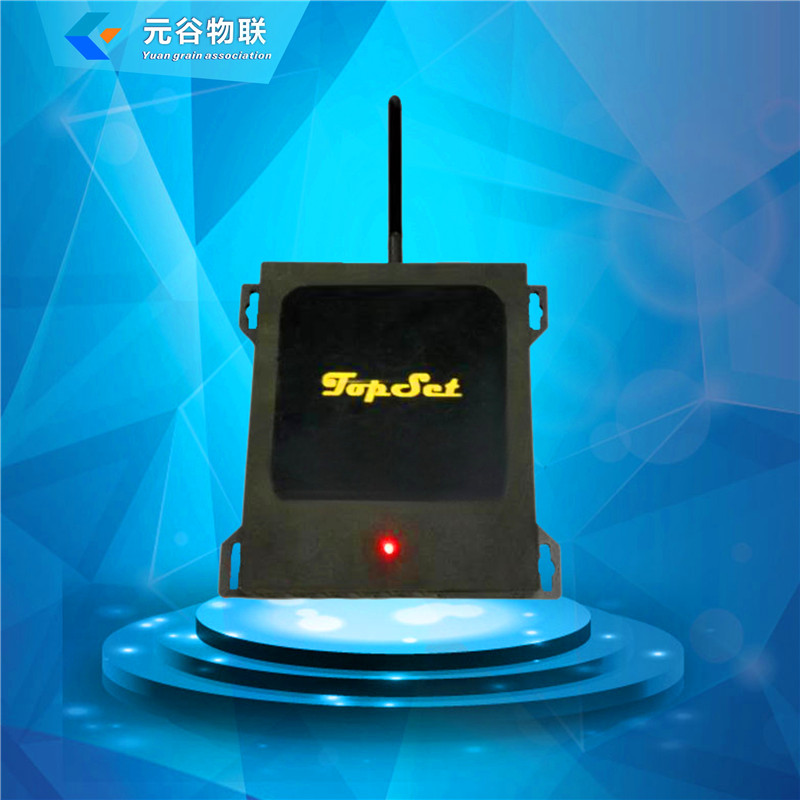

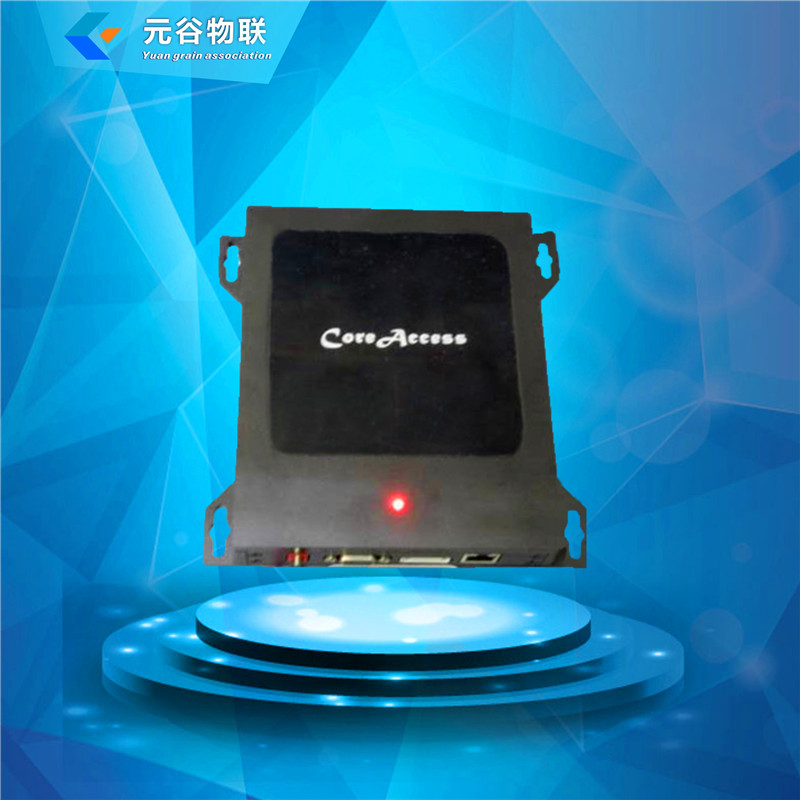

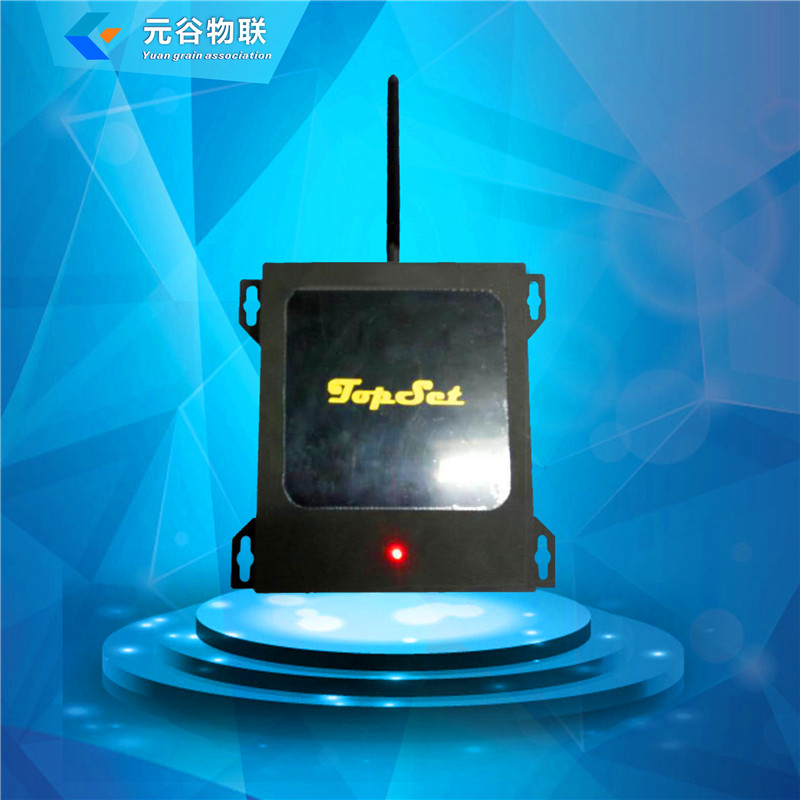

The reader is a high-performance UHF UHF RFID label machine, completely independent intellectual property design, combined with proprietary high-performance signal processing algorithms, while maintaining high literacy rate, to achieve rapid reading of electronic tags Write processing, can be widely used in logistics, vehicle management, access control systems, security systems and production process control and other radio frequency identification (RFID) system.

Features:

L complete independent intellectual property rights design;

L Appearance size: 235 * 235 * 57mm

L fully support in line with ISO18000-6B, EPC CLASS1 G2 standard electronic label;

L Operating frequency 902 ~ 928MHz (can be adjusted according to different countries or regions)

L in a broad spectrum frequency hopping (FHSS) or fixed frequency transmission mode;

L Output power up to 30dBm (adjustable);

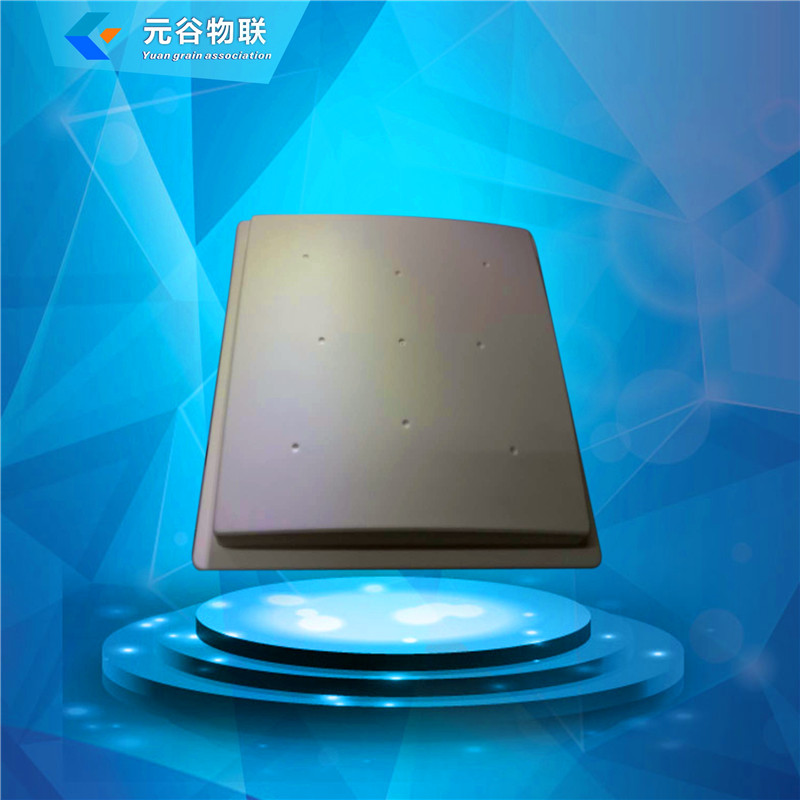

L 8dbi antenna configuration, the typical reading distance of 2 to 4 meters;

L Support automatic mode, interactive response mode, trigger mode and other work modes;

L Low-power design, single +9 V power supply;

L support RS232, RS485, Wiegand and other user interface;

L provide dynamic link library (DLL) and demo software source code to support the secondary development.

* The effective distance is related to protocol format, external antenna, electronic tag and working environment.
